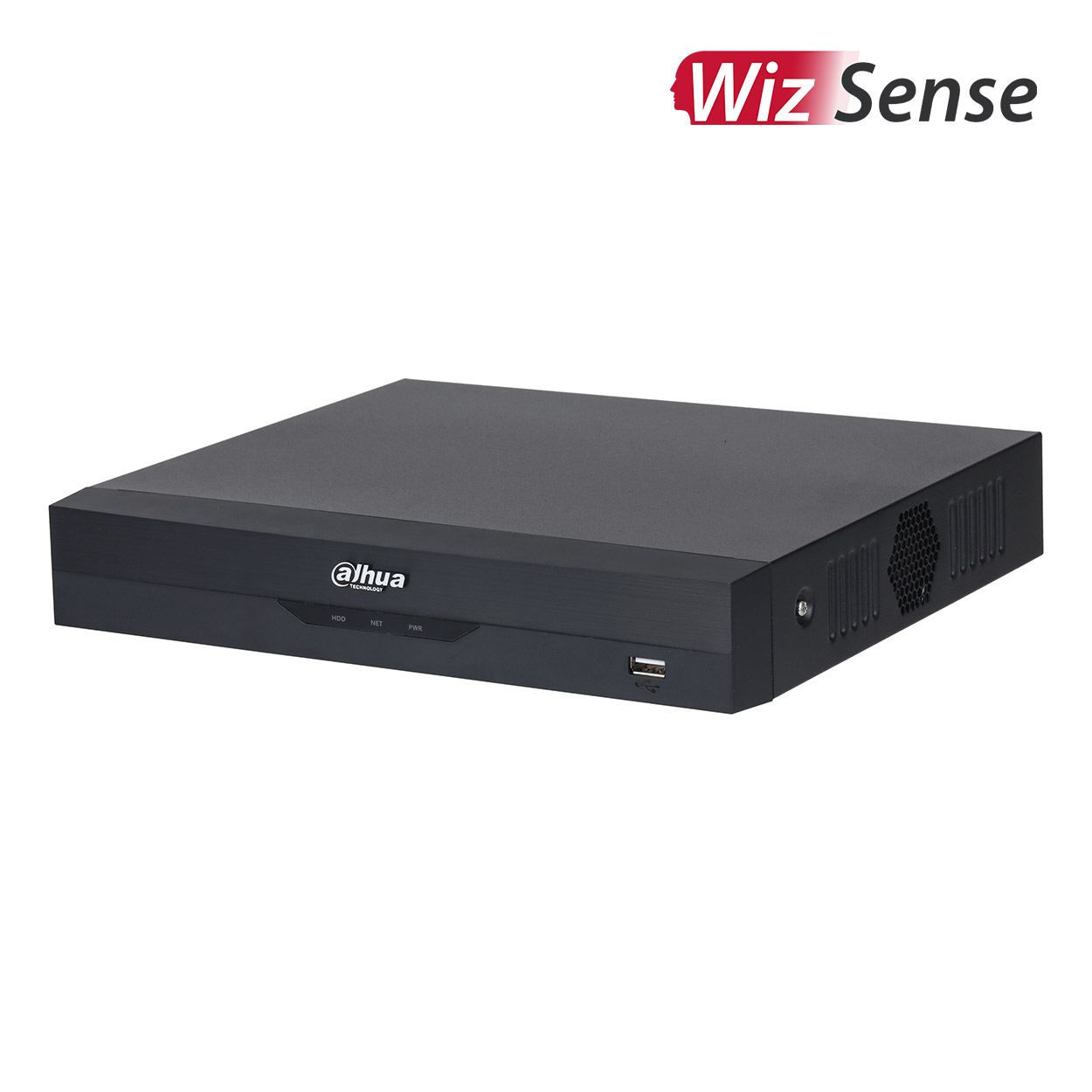

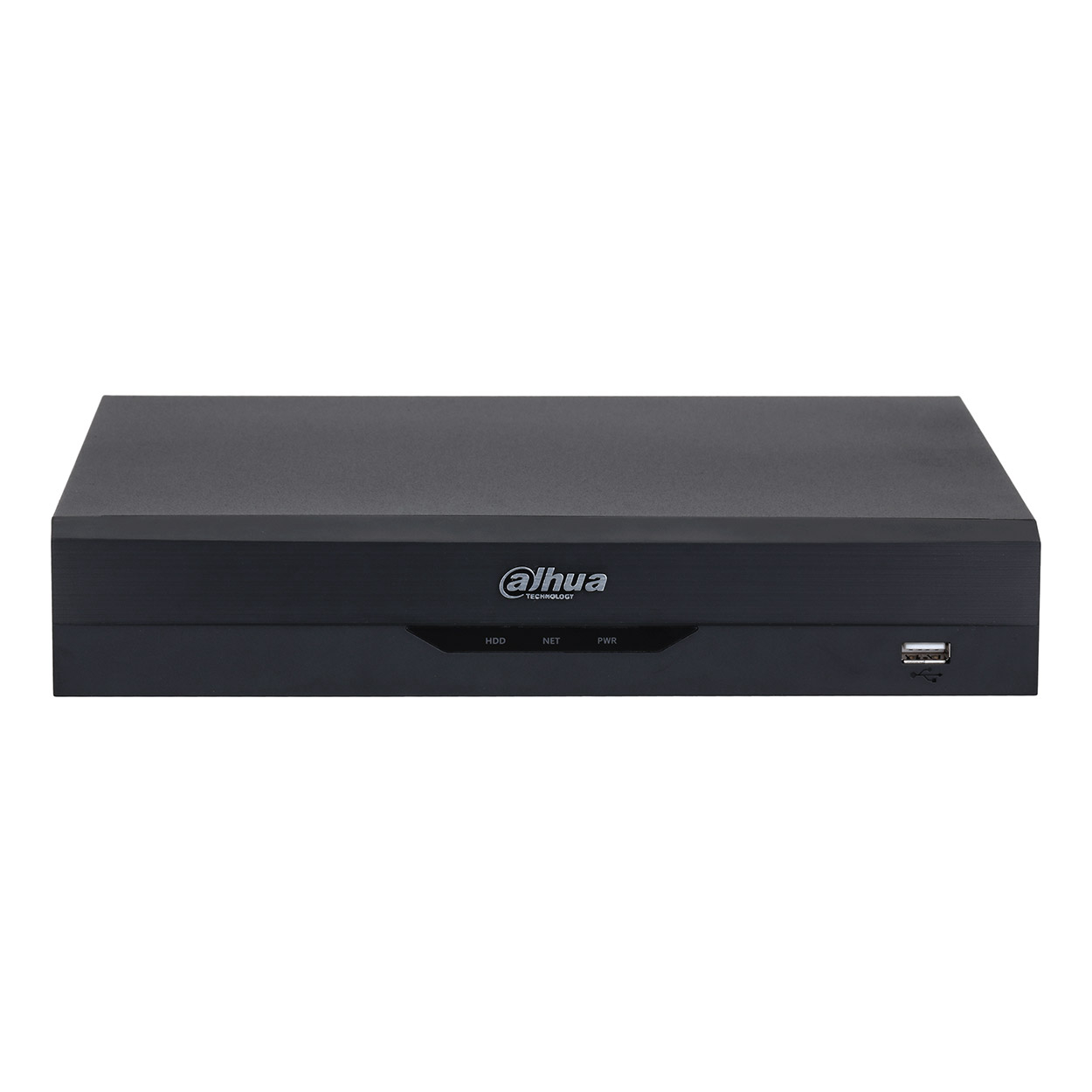

DAHUA XVR5104HS-I3 4 Kanal Penta-brid 5M-N/1080p Compact 1U WizSense DVR

4.968,45

Kayıt Cihazı

4 Kanal

PoE Desteği

Yok

Maksimum Bant Genişliği

32 Mbps

Kamera Disk Yuvası

1 HDD

Disk Başına Maks. Kapasite

16 TB

Ücretsiz Kargo

3 adet stokta

  • 2 Taksit: ₺2.643,46
  • 3 Taksit: ₺1.793,28
  • 4 Taksit: ₺1.368,19
  • 5 Taksit: ₺1.113,03
  • 6 Taksit: ₺943,01
Stok kodu: XVR5104HS-I3 Kategoriler: , , Brand:

Teknik Tablo

System
Main ProcessorIndustrial-grade processor
Operating SystemEmbedded Linux
Operating InterfaceWeb
Local GUI
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)Advanced Model : 1 channel, 10 IVS for each channel General Model : 2 channels, 10 IVS for each channel
Face Detection
Face AttributesGender
age group
glasses
expressions
face mask
beard
Face Detection Performance of AI by Recorder (Number of Channels)1 channel, (up to 8 face images/s)
Face Recognition
Face Database CapacityUp to 10 face databases and 10,000 images.
Face Recognition Performance of AI by Recorder (Number of Channels)1 channel
SMD Plus
SMD Plus by Recorder4-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input4 channels, BNC: adaptive access by default
HDCVI, AHD, TVI and CVBS access can be configured.
Camera Input1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps. 2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 4. CVBS: PAL/NTSC
IP Camera InputUp to 6 channels of IPC access 2 IP channels by default + 4 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding CapacityMain stream: All channel 5M-N (1 fps–10 fps)
4M-N/1080p (1 fps–15 fps)
1080N/720p/960H/ D1/CIF (1 fps–25/30 fps) Sub stream: D1/CIF (1 fps–15fps)
Dual-streamYes
Video Bit Rate32 kbps–6144 kbps
Audio Sampling8 kHz, 16 bit
Audio Bit Rate64 kbps
Video Output1 HDMI, 1 VGA HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen DisplayWhen IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6
Third-party Camera AccessONVIF
RTSP
Panasonic
Sony
Axis
Arecont
Pelco
Canon
Samsung
Compression Standard
Video CompressionAI Coding
H.265+
H.265
H.264+
H.264
Audio CompressionG.711a
G.711u
PCM
Network
Network ProtocolHTTP
HTTPS
TCP/IP
IPv4
RTSP
UDP
SMTP
NTP
DHCP
DNS
DDNS
P2P
Mobile Phone AccessiOS
Android
InteroperabilityONVIF 21.06
CGI Conformant
BrowserChrome IE9 or later Firefox
Network ModeSingle-address mode
Recording Playback
Record ModeGeneral, motion detection
intelligent
alarm
POS
Recording Playback1/4
Backup MethodUSB device and network
Playback ModeInstant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Alarm
General AlarmMotion detection, video loss, tampering
Anomaly AlarmNo disk, disk error, low space, offline, ip conflict, MAC conflict
Intelligent AlarmFace detection, face recognition, perimeter protection
Alarm LinkageRecord, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
Ports
Audio Input1-channel RCA 4-channel BNC (Coaxial Audio)
Audio Output1-channel RCA
Two-way TalkYes (share the same audio input with the first channel)
HDD Interface1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature.
RS-4851 port, for PTZ control
USB2 USB ports (USB 2.0)
HDMI1
VGA1
Network Port1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply12 VDC, 1.5 A
Power Consumption
