| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI | |
| AI by Recorder | Face detection |
| face recognition | |
| perimeter protection | |
| SMD Plus | |
| AI by Camera | Face detection |
| face recognition | |
| video metadata (human, motor vehicles, and non-motor vehicles) | |
| perimeter protection | |
| SMD Plus | |
| stereo analysis | |
| crowd distribution | |
| people counting | |
| ANPR | |
| vehicle density | |
| heat map | |
| AcuPick AI by Camera + Recorder | Max. 16-channel, 1 combined event per channel/s |
| Perimeter Protection | |
| Perimeter Performance AI by Recorder (Number of Channels) | 4 channels, 10 IVS rules for each channel |
| Perimeter Performance of AI by Camera (Number of Channels) | 16 channels |
| Face Detection | |
| Face Attributes | Gender |
| age group | |
| glasses | |
| expressions | |
| face mask | |
| beard | |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s each channel) |
| Face Detection Performance of AI by Camera (Number of Channels) | 16 channels |
| Face Recognition | |
| Face Database Capacity | Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s 2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
| Face Recognition Performance of AI by Camera (Number of Channels) | 16 channels |
| SMD Plus | |
| SMD Plus by Recorder | 8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 16 channels |
| Video Metadata | |
| Metadata Performance of AI by Camera (Number of Channels) | 8 channels |
| Human Attributes | Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella |
| Motor Vehicle Attributes | License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location. |
| Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet. |
| Vehicle License Plate Comparison | |
| ANPR by Camera (Number of Channels) | 8 channels |
| License Plate Database Capacity | 1. Create up to 20,000 plate numbers. 2. Blocklist and allowlist |
| Audio and Video | |
| Access Channel | 64 |
| Network Bandwidth | AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Resolution | 32 MP |
| 24 MP | |
| 16 MP | |
| 12 MP | |
| 8 MP | |
| 5 MP | |
| 4 MP | |
| 1080p | |
| 720p | |
| D1 | |
| CIF | |
| QCIF | |
| Decoding Capability | AI disabled: 2-channel 32 MP@20 fps |
| 2-channel 24 MP@20 fps | |
| 4-channel 16 MP@30 fps | |
| 5-channel 12 MP@30 fps | |
| 8-channel 8 MP@30 fps | |
| 12-channel 5 MP@30 fps | |
| 16-channel 4 MP@30 fps | |
| 32-channel 1080p@30 fps AI enabled: 1-channel 32 MP@20 fps | |
| 1-channel 24 MP@20 fps | |
| 2-channel 16 MP@30 fps | |
| 4-channel 12 MP@30 fps | |
| 4-channel 8 MP@30 fps | |
| 8-channel 5 MP@30 fps | |
| 12-channel 4 MP@30 fps | |
| 24-channel 1080p@30 fps | |
| Video Output | 2 VGA, 2 HDMI VGA:1920 × 1080, 1280 × 1024, 1280 × 720 HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 |
| Multi-screen Display | Main screen: 1/4/8/9/16/25/36/64 Sub screen: 1/4/8/9/16 |
| Third-party Camera Access | ONVIF |
| Panasonic | |
| Sony | |
| Axis | |
| Arecont | |
| Pelco | |
| Canon | |
| Samsung | |
| Compression Standard | |
| Video Compression | Smart H.265+ |
| H.265 | |
| Smart H.264+ | |
| H.264 | |
| MJPEG | |
| Audio Compression | G.711a |
| G.711u | |
| PCM | |
| G726 | |
| Network | |
| Network Protocol | HTTP |
| HTTPS | |
| TCP/IP | |
| IPv4/IPv6 | |
| UDP | |
| SNMP | |
| NTP | |
| DHCP | |
| DNS | |
| SMTP | |
| UPnP | |
| IP Filter | |
| PPPoE | |
| FTP | |
| DDNS | |
| Alarm Server | |
| IP Search (Supports Dahua IP camera, DVR, NVS, etc.) | |
| Multicast | |
| P2P | |
| Auto Registration | |
| iSCSI | |
| Mobile Phone Access | iOS |
| Android | |
| Interoperability | ONVIF 22.06 (Profile T |
| Profile S | |
| Profile G) | |
| CGI | |
| SDK | |
| Browser | Chrome |
| IE | |
| Safari | |
| Edge | |
| Firefox | |
| Network Mode | Multi-address mode, load balance, fault tolerance and other network port binding modes |
| Recording Playback | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection |
| intelligent | |
| alarm | |
| POS | |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Storage | |
| Disk Group | YES |
| Alarm | |
| General Alarm | Motion detection |
| privacy masking | |
| local alarm | |
| Anomaly Alarm | Camera offline |
| storage error | |
| disk full | |
| IP conflict | |
| MAC conflict | |
| login lock | |
| abnormal behavior of fan | |
| cybersecurity exception | |
| Intelligent Alarm | Face detection |
| perimeter protection | |
| face recognition | |
| video metadata (human, motor vehicles, and non-motor vehicles) | |
| SMD Plus | |
| stereo analysis | |
| crowd distribution | |
| people counting | |
| ANPR | |
| vehicle density | |
| heat map | |
| Alarm Linkage | Record |
| snapshot (panoramic) | |
| local alarm output | |
| IPC external alarm output | |
| access controller | |
| audio | |
| buzzer | |
| log, preset | |
| email | |

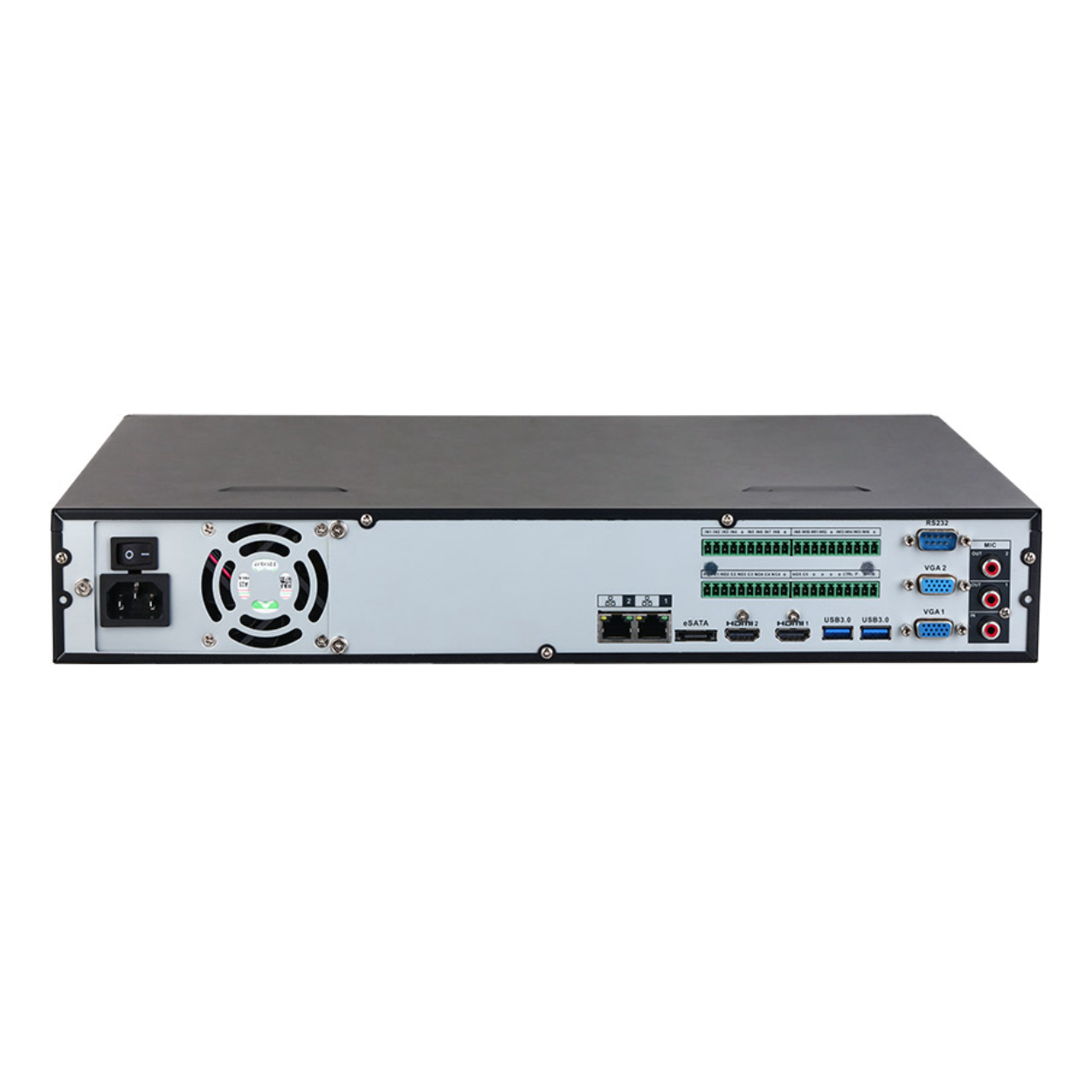

| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 2-channel RCA |
| Alarm Input | 16 channels |
| Alarm Output | 6 channels (1-channel 12 V 1 A output) |
| HDD Interface | 4 SATA ports, each disk can contain up to 16 TB. This limit varies depending on the environment temperature. |
| eSATA | 1 |
| RS-232 | 1 |
| RS-485 | 1 (half-duplex serial communication) |
| USB | 3(1 front USB 2.0 port, 2 rear USB 3.0 ports) |
| HDMI | 2 |
| VGA | 2 |
| Network Port | 2 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 100–240 VAC, 50-60 Hz |
| Power Consumption | Total output of NVR is ≤ 13 W (without HDD) |
| Net Weight | 4.74 kg (10.45 lb) |
| Gross Weight | 6.11 kg (13.47 lb) |
| Product Dimensions | 440.0 mm × 415.1 mm x 70.0 mm (17.32" × 16.34" × 2.76") (W ×D × H) |
| Packaging Dimensions | 530.0 mm × 500.0 mm × 210.0 mm (20.87" × 19.69" × 8.27")(W × D × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH) |
| Installation | Rack or desktop |
| Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020 |
| EN IEC 61000-3-2:2019+A1:2021 | |
| EN 61000-3-3:2013+A1:2019+A2:2021 | |
| EN 55035:2017+A11:2020 | |
| EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 | |
