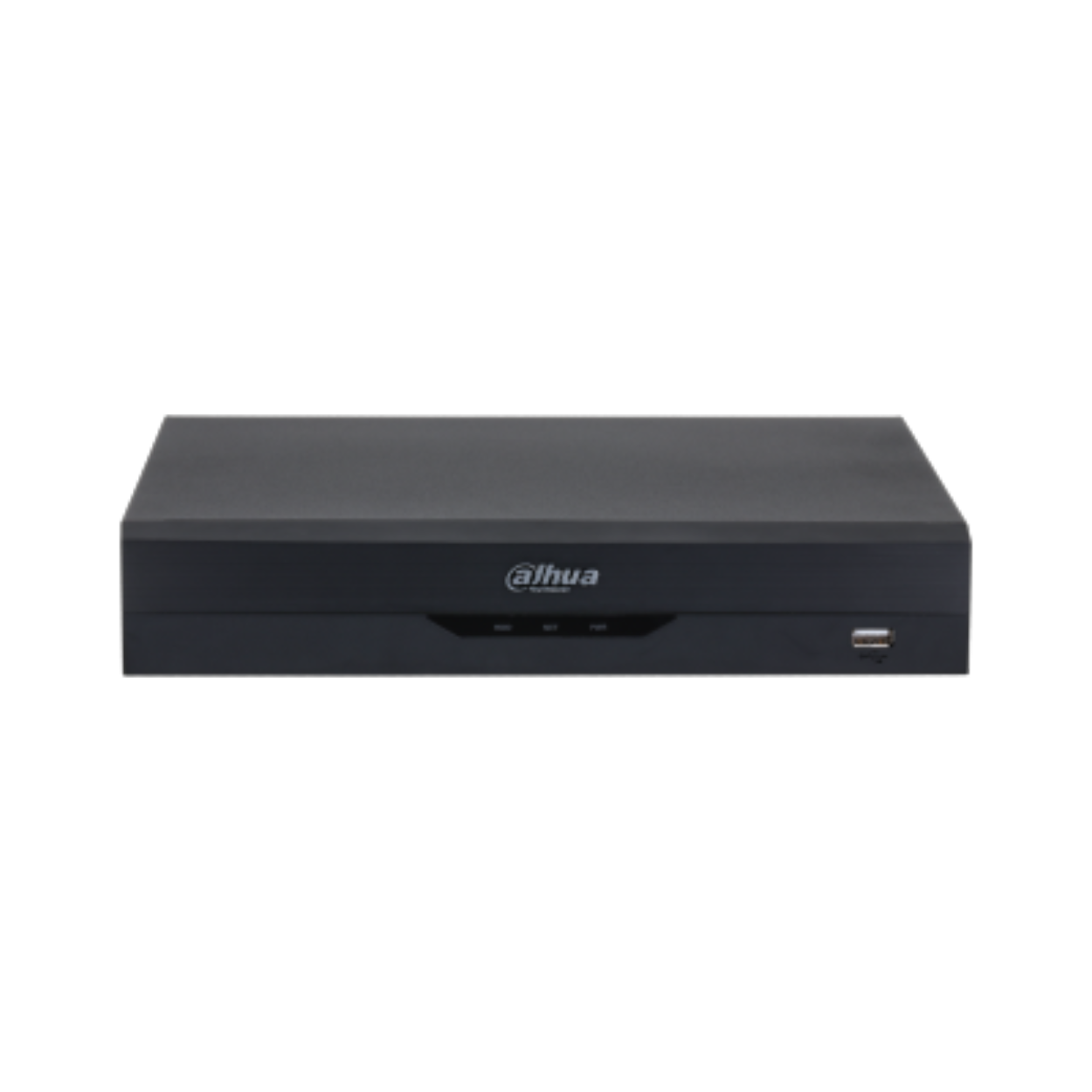

DAHUA NVR2104HS-P-T 4 Kanal H.265 NVR (4xPoE)

6.128,10

Kayıt Cihazı

4 Kanal

PoE Desteği

Var (Aktif PoE)

Maksimum Bant Genişliği

80 Mbps

Kamera Disk Yuvası

1 HDD

Disk Başına Maks. Kapasite

10 TB

Ücretsiz Kargo

20 adet stokta

  • 2 Taksit: ₺3.260,46
  • 3 Taksit: ₺2.211,84
  • 4 Taksit: ₺1.687,53
  • 5 Taksit: ₺1.372,82
  • 6 Taksit: ₺1.163,11
Stok kodu: NVR2104HS-P-T Kategoriler: , , Brand:

Teknik Tablo

System
Main ProcessorIndustrial-grade embedded processor
Operating SystemEmbedded Linux
Operation InterfaceWeb
local GUI
AI
AI by CameraFace detection
face recognition
perimeter protection
SMD Plus
AI by DeviceFace detection
face recognition
perimeter protection
SMD Plus
Perimeter Protection
Perimeter Performance AI by Device(Number of Channels)1
Perimeter Performance of AI by Camera (Number of Channels)4
Face Detection
Face Attributes6 attibutes: Gender
age group (6)
glasses
expressions (8)
mouth mask
beard
Face Detection Performance of AI by Device (1080P) (Number of Channels)1 (up to 12 face images/second)
Face Detection Performance of AI by Camera (Number of Channels)4
Face Recognition
Face Database CapacityUp to 10 face databases with 5,000 images
Face Recognition Performance of AI by Device (1080P) (Number of Channels)1 (up to 4 face images/second)
Face Recognition Performance of AI by Camera (Number of Channels)4
SMD Plus
SMD Plus by Device4
SMD Plus by Camera4-channel SMD Plus (AI by camera): Detects tripwire and intrustion of human or vehicle
filters false alarms caused by leaves, raindrops and change of brightness away
Video
Access Channel4 channels
Network Bandwidth80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding.
Resolution12MP
8MP
5MP
4MP
3MP
2MP
720p
D1
Decoding CapabilityAI disabled: 1-channel 12MP@30 fps
1-channel 8MP@30 fps
2-channel 5MP@30 fps
3-channel 4MP@30 fps
6-channel 1080p@30 fps AI enabled: 1-channel 8MP@30 fps
1-channel 5MP@30 fps
2-channel 4MP@30 fps
4-channel 1080p@30 fps
Video Output1 × VGA, 1 × HDMI (simultaneous)
Multi-screen Display1, 4 views
Third Party Camera AccessOnvif
Compression
VideoSmart H.265+
H.265
Smart H.264+
H.264
MJPEG
AudioPCM
G711A
G711U
G726
Network
Network ProtocolHTTP
HTTPS
TCP/IP
IPv4
RTSP
UDP
NTP
DHCP
DNS
SMTP
UPnP
IP Filter
DDNS
Alarm Server
IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
P2P
Auto Registration
Mobile Phone AccessAndroid
iOS
InteroperabilityONVIF (profile T
profile S
profile G)
CGI
SDK
BrowserChrome
IE9 or later
Firefox
Record Playback
Multi-channel PlaybackUp to 4 channels
Record ModeManual record
alarm recordings
motion detection recordings
scheduled recordings
StorageLocal HDD and network
BackupUSB device
Playback Function1. Play
pause
stop
fast forward
fast backward
rewind
play by frame 2. Full screen
backup (vide clip/file)
partially zom in
audio on/off
Alarm
General AlarmMotion detection
privacy masking
video loss
PIR alarm
IPC alarm
Anomaly AlarmCamera offline
storage error
disk full
IP conflict
MAC conflict
login lock
cyber security exception
Intelligent AlarmFace detection
face recognition
perimeter protection (intrusion and tripwire)
IVS
SMD Plus
Alarm LinkageRecording
snapshot
buzzer
log
preset
email
tour

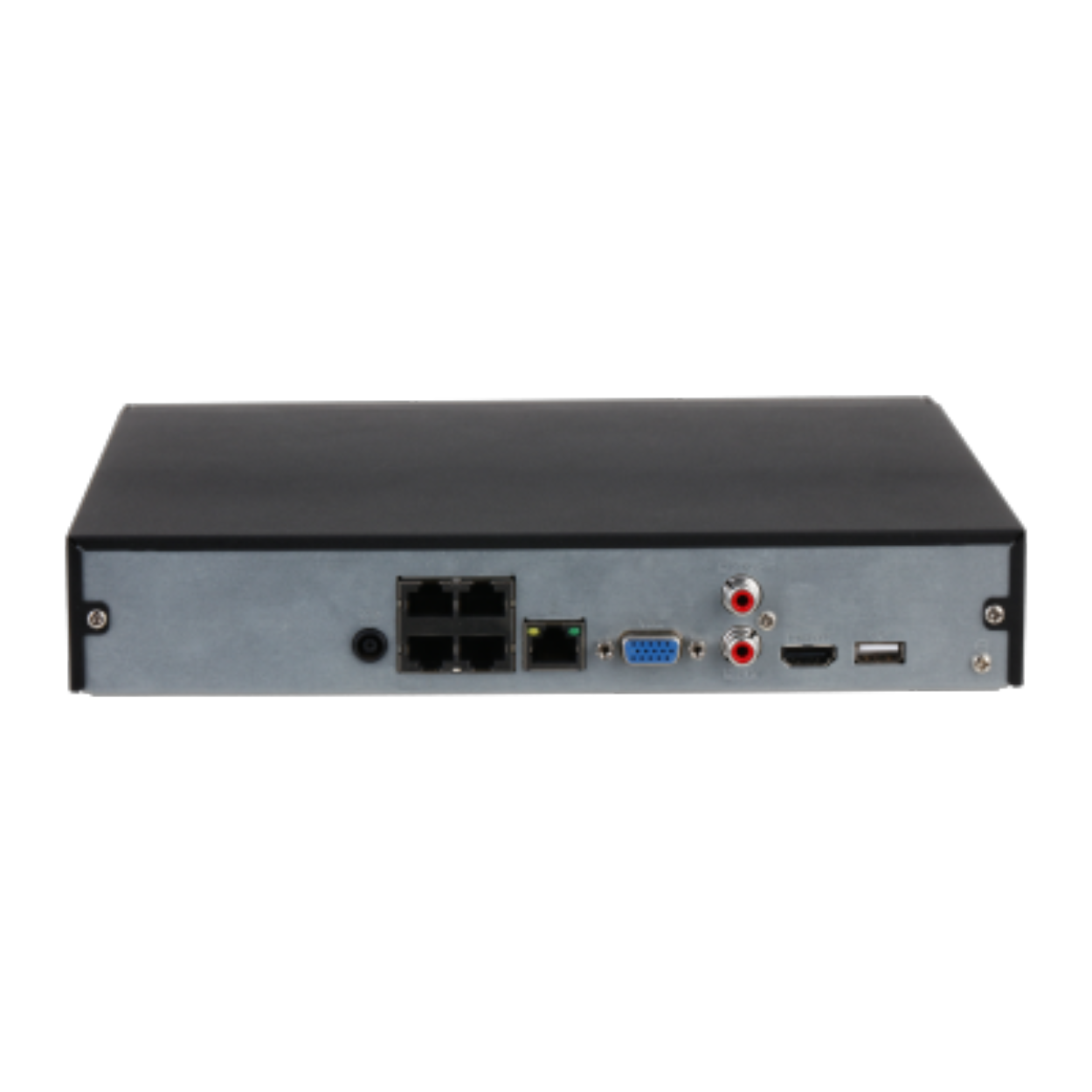

External Port
HDD1 SATA port, up to 10 TB. The maximum HDD capacity varies with environment temperature
USB1 × front USB2.0
1 × back USB2.0
HDMI1 (max. resolution: 4K)
VGA1
Network1 × RJ-45, 10/100 Mbps
PoE4 × PoE ports , 10/100 Mbps
RCA Input1
RCA Output1
General Parameter
Power Supply53 V DC, 1.13 A
Power ConsumptionTotal output of NVR is ≤ 10W (without HDD)Total output power of PoE is 38W, the maximum output power of a single port is 25.5W
Net Weight0.86 kg (1.90 lb)
Gross weight1.86 kg (4.10 lb)
Product Dimensions260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × L × H)
Package Dimensions117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09") (W × L × H)
Operating Temperature–10 °C to +55 °C (+14 °F to +131 °F)
Storage Temperature0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity10%–93%
Storage Humidity30%–85%
Operating Altitude3,000 m (9,842.52 ft)
InstallationDesktop
CertificationsFCC:47 CFR FCC Part15,SubpartB,Class A CE-EMC:EN 55032:2015,Class A
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019
EN 55024:2010+A1:2015
EN 55035:2017
EN 50130-4:2011+A1:2014 CE-LVD:EN 62368-1:2014+A11:2017
