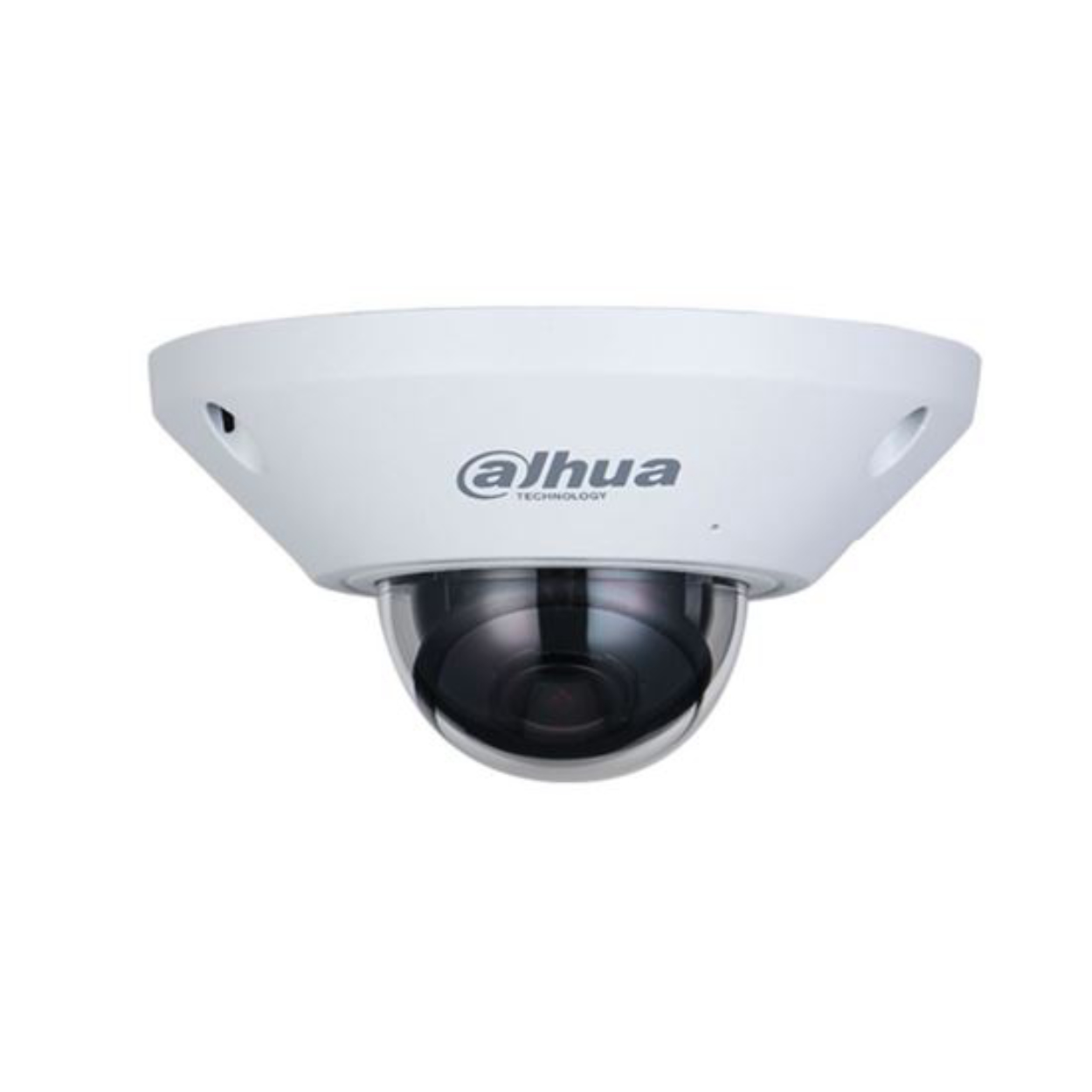

DAHUA IPC-EB5541-AS 5MP WizMind Fisheye IP Kamera

11.763,45

Kamera Kasa Tipi

Fisheye

Kamera Çözünürlük

5MP

Lens Özelliği

1.4mm

Optik Zoom

Yok

Kamera Ses Desteği

Dahili Mikrofon

Gece Görüş Mesafesi

Yok

Kamera SD Kart Desteği

Var

24/7 Color

Yok

Alarm Desteği

Var

WDR

120dB

PoE Desteği

Var (Aktif PoE)

Koruma Direnci

IK10

Lens Tipi

Sabit Lens

Ücretsiz Kargo

Stokta yok

Stok kodu: IPC-EB5541-AS Kategoriler: , , Brand:

Teknik Tablo

Technical Specification
Camera
Image Sensor1/2.7”5Megapixel progressive CMOS
Max. Resolution2592 (H) × 1944 (V)
ROM128 MB
RAM512 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination0.006 Lux@F2.0 (Color, 30IRE)
S/N Ratio> 56 dB
Pan/Tilt/Rotation RangePan: 0°–355° Tilt: 0°–55° Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length1.4 mm
Max. ApertureF2.0
Field of ViewHorizontal: 180° Vertical: 180° Diagonal: 180°
Iris TypeFixed
Close Focus Distance0.2 m (0.7 ft)
DORI DistanceDetectObserveRecognizeIdentify
28 m (91.9 ft)11.2 m (36.7 ft)5.6 m (18.4 ft)2.8 m (9.2 ft)
Smart Event
Heat MapYes
Professional, intelligent
IVS (Perimeter Protection)Tripwire
intrusion
People CountingSupport people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed)
support people counting in 4 areas
Intelligent SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video CompressionH.265
H.264
H.264H
H.264B
MJPEG (only supported by the sub stream)
Smart CodecSmart H.265+/ Smart H.264+
Video Frame RateMain stream (2592 × 1944 @1–25/30 fps) sub stream (704 × 576 @1–25 fps/704 × 480 @1–30 fps) third stream (1280 × 720 @1–25/30 fps)
Stream Capability3 streams
Resolution5M (2592 × 1944)
3M (2048 × 1536)
UXGA (1600 × 1200)
1.3M (1280 × 960)
720p (1280 × 720)
D1 (704 × 576/704 × 480)
VGA (640 × 480)
CIF (352 × 288/352 × 240)
Bit Rate ControlCBR/VBR
Video Bit RateH.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps
Day/NightColor/B/W
BLCYes
HLCYes
WDR120 dB
Scene Self-adaptation (SSA)Yes
White BalanceAuto/natural/street lamp/outdoor/manual/regional custom
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas)
Region of Interest (RoI)Yes (4 areas)
Privacy Masking4 areas
Audio
Built-in MICYes
Audio CompressionPCM
G.711a
G.711Mu
G726
Alarm
Alarm EventNo SD card
SD card full
SD card error
service life warning (supported by Dahua card)
network disconnection
IP conflict
illegal access
motion detection
video tampering
tripwire
intrusion
scene changing
audio detection
voltage detection
external alarm
people counting in area
stay alarm
people counting
people No. exception detection
safety exception
Network
SDK and APIYes
ProtocolIPv4
IPv6
HTTP
TCP
UDP
ARP
RTP
RTSP
RTCP
RTMP
SMTP
FTP
SFTP
DHCP
DNS
DDNS
QoS
UPnP
NTP
Multicast
ICMP
IGMP
NFS
PPPoE
SNMP
Cyber SecurityVideo encryption
firmware encryption
configuration encryption
Digest
WSSE
account lockout
security logs
IP/MAC filtering
generation and importing of X.509 certification
syslog
HTTPS
802.1x
trusted boot
trusted execution
trusted upgrade
InteroperabilityONVIF (Profile S/Profile G/Profile T)
CGI
Milestone
Genetec
P2P
User/Host20 (Total bandwidth: 64 M)
StorageFTP
SFTP
Micro SD card (support max. 256 G)
NAS
BrowserIE: IE8, IE9 and IE11 Chrome Firefox
Management SoftwareSmart PSS
DSS
DMSS
Mobile PhoneIOS
Android
Certification
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input1 channel (RCA port)
Audio Output1 channel (RCA port)
Alarm Input1 channel in: 5mA 3V–5V DC
Alarm Output1 channel out: 300mA 12V DC
Power
Power Supply12V DC/PoE
Power ConsumptionBasic power consumption: 3.7W (12V DC)
4.7W (PoE) Max. power consumption (H.265 + intelligent function + WDR): 5.1W (12V DC)
6W (PoE)
Environment
Operating Conditions–30 °C to +55 °C (–22°F to +131°F)/Less than 95% RH
Strorage Conditions–40°C to +60°C (–40°F to +140°F)
Protection GradeIP67
IK10
Structure
CasingMetal
Dimensions62.0 mm × ?110.0 mm (2.44" × ?4.3")
Net Weight387 g (0.9 lb)
Gross Weight502 g (1.1 lb)
