| Main Processor | 64-bit high-performance multi-core processor |
| Operating System | Embedded Linux OS |
| Operating Interface | Web (PCAPP) |
| Controller | Single controller |
| Cache | 8 GB by default (extendable to 64 GB) |
| AI Applications | |
| AI by Camera | Face detection, face recognition, IVS (abandoned object, missing object, loitering, crowd gathering, parking, fence-crossing, fast moving, tripwire and intrusion), video metadata (human, vehicle, non-motor vehicle), vehicle recognition, people counting (fisheye or people counting camera required),face & body detection, crowd distribution, smart thermal (call detection, visible channel- smoking detection, thermal channel-smoking detection) |
| Camera Compatibility | |
| Thermal | Works with camera for fire alarm, temperature alarm, temperature difference alarm, hot spot, cold spot, smoking and calling |
| People Counting | Works with camera for tripwire people counting, regional people counting and queue people counting |
| Bullet-PTZ Smart Track | Works with camera for manual tracking, auto tracking, click positioning and select positioning |
| Fisheye Dewarp | Supports dewarping for fisheye cameras |
| Cluster | |
| Cluster | N+M |
| Audio and Video | |
| Third-party Camera Access | Onvif, Onvifs, RTSP, Sony, Panasonic, Axis, Arecont, Pelco, Canon, Samsung, Hikvision |
| Compression Standard | |
| Video Compression | Smart H.265+ |
| H.265 | |
| Smart H.264+ | |
| H.264 | |
| MJPEG | |
| Audio Compression | G.711A |
| G.711U | |
| PCM | |
| G726 | |
| Network | |
| Network Protocol | HTTP |
| HTTPS | |
| TCP/IP | |
| IPv4 | |
| RTSP | |
| UDP | |
| SMTP | |
| NTP | |
| DHCP | |
| DNS | |
| DDNS | |
| P2P | |
| GAT1400 | |
| iSCSI | |
| FTP | |
| SMB | |
| NFS | |
| Mobile Phone Access | DMSS |
| Interoperability | ONVIF (Profile S, T and G) |
| CGI | |
| SDK | |
| Browser | Chrome |
| PCAPP | |
| IE9 or higher | |
| Firefox | |
| Network Mode | NIC binding mode such as multiple-address mode, load balance, fault-tolerance, link aggregation, etc |
| Recording Playback | |
| Multi-channel Playback | Max. 16-channel playback |
| Record Mode | Auto record |
| manual record | |
| search video detection | |
| IO alarm | |
| thermal imaging | |
| intelligent event | |
| all record file | |
| Storage Method | Internal HDD and network disk |
| Backup Method | HDD, peripheral USB storage device |
| Playback Function | 1. Play, pause, stop, fast forward, fast backward, reverse play, frame by frame 2. Full-screen, backup (clip |
| file), snapshot, digital zoom, audio on | |
| off | |
| Storage | |
| Video Direct Storage (Private Protocol) | Incoming: 320-channel (bandwidth: 800 Mbps) Recording: 320-channel (bandwidth: 800 Mbps) Outgoing: 320-channel (bandwidth: 800 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) |
| Video Direct Storage (Onvif) | Incoming: 320-channel (bandwidth: 800 Mbps) Recording: 320-channel (bandwidth: 800 Mbps) Outgoing: 320-channel (bandwidth: 800 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) |
| Video Direct Storage (Auto Register) | Incoming: 320-channel (bandwidth: 800 Mbps) Recording: 320-channel (bandwidth: 800 Mbps) Outgoing: 320-channel (bandwidth: 800 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) |
| Video Direct Storage (International Protocol) | Incoming: 320-channel (bandwidth: 800 Mbps) Recording: 320-channel (bandwidth: 800 Mbps) Outgoing: 320-channel (bandwidth: 800 Mbps) Playback: 32-channel (bandwidth: 64 Mbps) |
| Picture Direct Storage | Incoming: 120-channel (550 KB/picture) Recording: 120-channel (550 KB/picture) Outgoing: 120-channel (550 KB/picture) Playback: 32-channel (550 KB/picture) |
| Disk Group | Yes |
| iSCSI | Supports client and Server |
| Network Disk | Supports client |
| RAID | RAID 0/1/5/6/10/50/60 |
| (with enterprise-grade HDD) | |
| Record Management | Supports record control (continuous, event-based, scheduled, scheduled & event-based). |
| Storage Pool | Yes |
| IPSAN | |
| IPSAN Performance | 280-channel × 2 Mbps video stream writing and 24-channel × 2 Mbps video playback ( I/O size of VMS is 64 KB) 400-channel × 2 Mbps video stream writing and 24-channel × 2 Mbps video playback (I/O size of VMS is 512 KB) |
| Alarm | |
| General Alarm | Motion detect |
| tampering | |
| IPC external alarm | |
| Anomaly Alarm | IPC offline alarm |
| storage error | |
| HDD full | |
| video frame loss | |
| SSD exception | |
| IP conflict | |
| MAC conflict | |
| login lock | |
| fan malfunction | |
| no HDD | |
| network security exception | |
| power exception | |
| disk health exception | |
| RAID exception | |
| storage pool exception | |
| temperature alarm | |
| share service | |
| Alarm Linkage | Record |
| snapshot (full image) | |
| alarm uploading | |
| remote device alarm output | |
| camera audio | |
| buzzer | |
| log | |
| preset | |
| email, smart tracking and warning light. Disarming alarm linkage action by period or one-click sync disarm config with channels | |

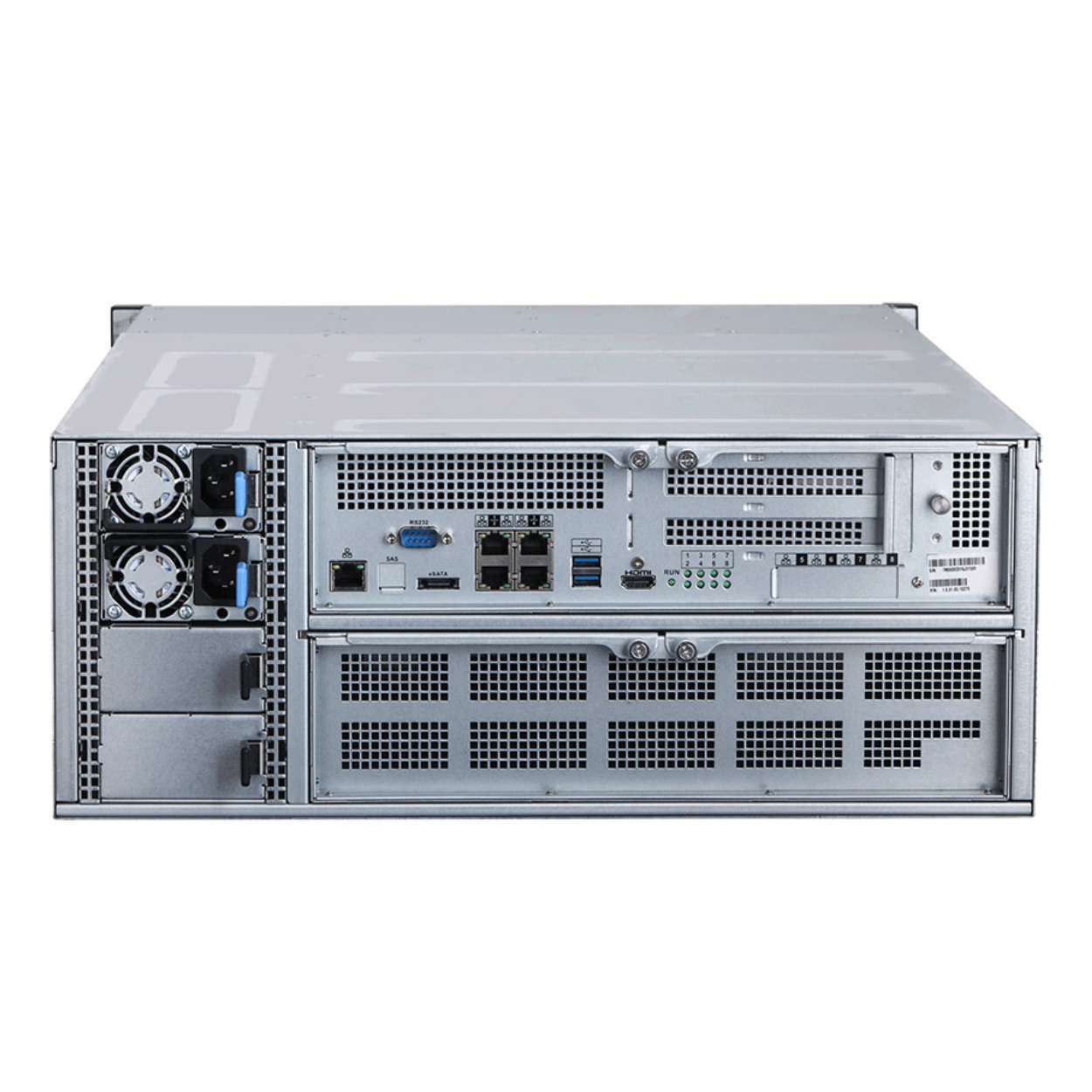

| Port | |
| HDD Interface | 24 slots, SATA Max.18 T/HDD hot swapping CMR support enterprise-grade HDD |
| eSATA | 1 port |
| RS-232 | 1 port, for debug or COM data transmission |
| USB | 4 ports. 2 USB2.0 ports at the front panel and 2 USB3.0 ports at the rear panel |
| HDMI | 1 port, only for debug |
| Network Port | 4 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports. (gigabit electrica port) 1 RJ-45 10/100 Mbps self-adaptive Ethernet ports. (100 Mbps electrical port) |
| Power | 1+1 redundant power |
| Network Port Extension | 4 × 1-GbE LAN ports (optional) 2 × 10-GbE optical fiber ports (optional) |
| General | |
| Power Supply | 100-240 VAC 50-60 Hz |
| Power Consumption | |
